4K/UHD and 2K/HD Production Camera

4K/UHD and 2K/HD Production Camera
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai 4K/UHD and 2K/HD Production Camera

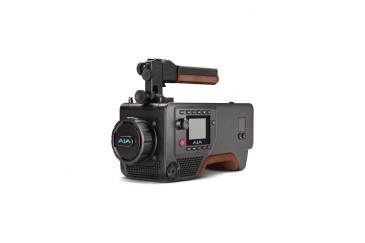

The AJA CION 4K/UHD and 2K/HD Production Camera features an APS-C sized 4K image sensor capable of capturing both DCI and UHD 4K as well as 2K and HD resolution video. Video is recorded using Apple ProRes 4444 and 422 codecs up to DCI 4K (4096x2160) at 60 fps to AJA Pak media. The camera can also output AJA Raw video at up to DCI 4K at 120 fps via quad-link 3G-SDI output, and up to 30 fps over Thunderbolt. With an ergonomic yet flexible design and industry-standard connections, the CION is ready for professional use in the field or in the studio.

The 4K APS-C sized CMOS image sensor provides 12 stops of dynamic range and utilizes an electronic global shutter to eliminate motion skew associated with rolling shutters. An integrated Optical Low-Pass and IR cut filter serves to reduce moiré while yielding sharp images with high quality colors. The camera uses a PL lens mount for use with industry standard cinema lenses. And because APS-C is very similar in size to that of Super 35mm, your Super 35mm PL lenses will cover the imaging area of the sensor. Mechanical back focus adjustment has been included for fine-tuning the distance between the lens and the sensor for optimum image sharpness.

The CION is designed to be user friendly in form and operation. A contoured shoulder pad provides comfortable shoulder-mounted operation, and the included top handle features an integrated LANC start/top button. All of the audio and video connections are industry-standard and have been placed so not to interfere with camera operation. Camera interface controls are located on the side of the camera facing the operator for easy access in single-user setups. The menu is also easy to navigate using a dial knob. The integrated monitor displays the menu information as well as a preview of your real-time image. The camera can also be controlled remotely via a LAN connection, and even ganged with other CION cameras for multicam shoots.

Features:

- ProRes 4444 & 422 to AJA Pak Media Cards.
- AJA Raw via 3G-SDI Output up to 4K 120p.
- Sensor CION features a 4K APS-C sized CMOS sensor with an electronic global shutter and 12 stops of dynamic range.
- Recording Formats CION can record at 4K (4096x2160), UltraHD (3840x2160), 2K (2048x1080) and HD (1920x1080), 2K and HD are hardware scaled from the full 4K sensor, resulting in beautiful oversampled images, which also retain the focal length of your lens at any desired resolution.
- Pak Media Pak Media uses AJA’s proven SSD based Pak storage which neatly mount directly in-camera.
- Pak-Adapt-CFast Pak-Adapt-CFast allows you to use CFast media with CION.
- PL Lens Mount PL mount lenses are the industry standard for cinema and professional production cameras and are widely available the world over.
- Optical Low Pass Filter and IR Cut Filter An integrated OLPF (Optical Low Pass Filter) reduces unwanted moiré effects while still retaining vital image detail.
- Back Focus Adjustment The inclusion of a mechanical back focus adjustment allows the proper calibration of the distance between lens and sensor.
- Chassis CION’s sleek chassis is formed of gravity molded magnesium which is lightweight but extremely strong.
