Antenna
| Harga | Rp 1,00 |
| Ketersediaan Barang | Tak Terbatas |
Lebih Lengkap Mengenai Antenna

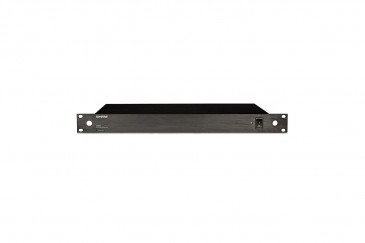

The Shure UA845WB UHF Antenna Distribution Amplifier distributes a boosted radio-frequency (RF) signal from Shure wireless microphone transmitters, to four receivers. The Shure UR4, UC4 and UHFR series are among some of the compatible wireless microphone systems.
Features:
-Expandability. The UA845-SWB UHF Antenna Distribution System
is designed for large UHF, UHF-R, or ULX-D™ wireless systems. Each unit
allows up to four wireless receivers to use the same two antennas, and
the CASCADE ports allow connection to a fifth receiver or a second
UA845-SWB.
-Compatibility. The UA845-SWB is compatible with all
Shure UHF, UHF-R, and ULX-D wireless microphone receivers operating
within a compatible frequency range (see UHF Carrier Frequency Ranges in
the Specifications section).
-CASCADE Ports. Two 50 ?, BNC-type
antenna CASCADE ports allow an additional UA845-SWB unit or a fifth
wireless receiver. A large wireless system can be run off of a single
pair of antennas.
-Power OUTPUT and OUT Connectors for Shure UHF
and UHF-R® Wireless systems. Up to five U4 or UR4 receivers can be
daisy-chained and powered from a single source via the Power OUTPUT
connectors. DOES NOT APPLY TO ULX or ULX-D.
