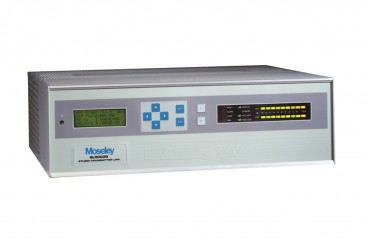

RF Digital STL Transmission System

RF Digital STL Transmission System
Klik pada gambar untuk memperbesar
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai RF Digital STL Transmission System

Starlink SL9003Q is a fully integrated digital RF STL system. It provides audio, voice and data connectivity to remote transmitter sites over narrow bandwidth channel allocations. Starlink’s open architecture allows it to be configured for simplex, full-duplex multi-hop repeater or automatic hot/cold redundant links.

Your digital audio processor’s signature air sound is delivered with no noise buildup or distortion common to analog lines or STLs. Selectable QAM modulation allows high audio payload capacity in a 200-500 kHz STL channel. 44.1, 48 and 32 kHz sample rates plus an available Ethernet data channel gives you all the signals required for HD Radio™ and Multicasting. Single chassis repeaters provide cost-efficient multi-hop links. Audio quality is preserved by not decoding and re-encoding at the repeat site.

Both AES/EBU and analog inputs and outputs on a single module make easy connections to analog or digital studios, transmitters and processing. Built in our own factory means on-time deliveries and readily available spare parts. Moseley technicians test all systems before they leave our plant.


-Linear uncompressed audio
-HD Radio™ Data Streams
-32, 44.1, or 48 kHz sample rates
-Input AES/EBU Digital or Analog (L+R)
-Output AES/EBU Digital and Analog (L+R)
-Built in RS-232 data channels
-User-Selectable 16, 32, 64, 128 QAM modulation
-User-selectable 200-500 kHz channel bandwidth
-Adaptive Equalizer
-Powerful Reed-Solomon
-Error Correction
-Low processing delay
