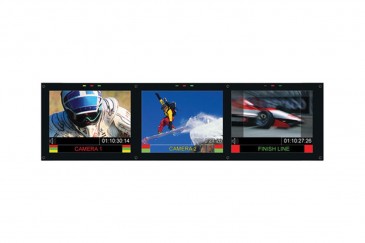

The Marshall Electronics Triple 6.5" Rack Mounted Monitor Set with 3G/HD/SD-SDI features three 6.5" LCD displays, each with 1024 x 768 RGB dots. Each display accepts a single 3G/HD/SD-SDI video signal via BNC connectors with active loop-through capability. This rack mount unit also has an RS-422/485 connection with loop-through for control communication and In-Monitor Display (IMD) functionality. V-R653-IMD-3GTE supports Image Video, NVISION, TSL and Marshall protocols.

Each 6.5" LCD display has 1042 x RGB x 768 resolution and supports 16.7 million colors. In addition, a 500:1 contrast ratio and 650 cd/m² luminance produce enhanced image quality in varying light and viewing conditions. IMD functionality means that these monitors can utilize the lower portion of the screen to display information that would usually require a separate UMD unit. On-screen display features include video time code, three-color "soft" tallies and audio presence indicators. There are also three LED tally lights located above the screen.

V-R653-IMD-3GTE uses Marshall's RotoMenu for simple and direct menu navigation and quick access to adjustments for brightness, contrast, color and other settings. There are also two user-definable function buttons and a D-pad. Additional features include multiple Frame Marker Overlays, Blue Gun, Pixel-to-Pixel mode and adjustment settings memory. The backlight has a five year (50,000 hour) life, and future firmware upgrades can be done in the field via the RS-422/485 port.
