Chrome Edition Compact Digital Mixing Surface

Lebih Lengkap Mengenai Chrome Edition Compact Digital Mixing Surface

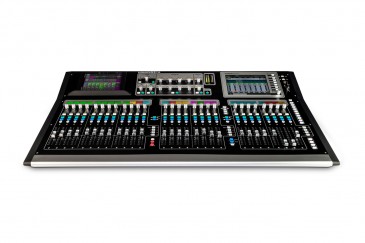

The Allen & Heath GLD-112 Chrome Edition is a compact digital mixing surface that is designed to integrate into a GLD digital mixing system, which provides scalable I/O, integrated FX processing, advanced routing, wireless remote mixing via iPad, and much more. Successor to the GLD-112, this version features all of the same functionality of the original, while adding sleek new styling, Automatic Mic Mixing, new embedded plugin FX and new compressor models on all channels. Featuring local I/O comprised of 4 XLR mic/line inputs, 4 XLR line outs, 4 RCA inputs, 2 RCA outputs, and digital outputs in SPDIF and AES3 formats, the GLD-112 Chrome Edition is designed to connect to a range of optional remote I/O racks via Cat5, allowing you to build 28, 36 or 44 mic input systems. The console is ideal for tour sound, and for permanent sound reinforcement installations.

The GLD-112 Chrome Edition mixer provides 48 input processing channels, 8 stereo FX engines, 30 configurable buses, 20 mix processing channels, and enough DSP power to provide processing without compromise. It has an analog-style channel processing control section, complemented by a graphical 8.4" touchscreen. A fully customizable drag 'n drop layout allows quick and easy assignment of inputs and mixes to fader strips. There are 20 fader strips in 4 layers, each with motorized faders, a channel LCD display which can be named and color coded, plus a rotary control for direct access to gain, pan, and aux/FX sends.

The GLD-112 Chrome Edition connects to a range of plug 'n play I/O racks to 'build' 28, 36 or 44 mic input systems. A primary AR2412 rack (24 XLR inputs, 12 XLR outs) and up to two AR84 expander racks (8 XLR inputs, 4 XLR outs each) can be connected over 120m Cat5 runs using A&H's dSNAKE protocol. Or, the AB168 portable AudioRack can be used, providing 16 XLR inputs and 8 XLR outputs when connected to the GLD-80, or the AR2412 AudioRack. dSNAKE provides control to the remote preamp, and all mic preamps are scene recallable.

AR2412 also includes a connection for personal monitoring systemsGLD-112 Chrome Edition has the ability to record and playback a stereo signal on a USB memory stick. Standard iLive audio I/O option cards for Dante, MADI, EtherSound and Allen & Heath's ACE protocols can be fitted, allowing multi-channel record/playback, FOH/monitor splits, and connection to A&H iLive systems, which can easily be configured using the GLD system's extensive soft-patching
