3G/HD/SD/Analog Mixed High-Resolution Multi-Viewer
| Harga | Rp 1,00 |
| Ketersediaan Barang | Tak Terbatas |
Lebih Lengkap Mengenai 3G/HD/SD/Analog Mixed High-Resolution Multi-Viewer

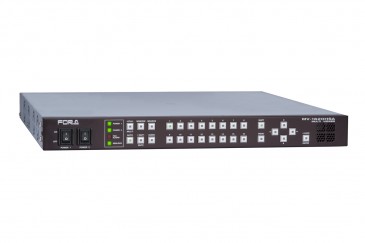

The MV-1620HS is a compact (1RU)
multi-viewer that accepts up to 16 channels of mixed HD/SD-SDI or analog
composite signals for monitoring on one or two (option) screens.
Full-featured yet economical, the unit offers a customizable window
layout and displays audio levels, titles, and timers, etc.
Supports
mixed signals as required, from HD-SDI, SD-SDI, or analog composite
sources. Asynchronous input is also supported. The viewer accepts an
array of formats and frame rates including NTSC, PAL, 1080/59.94i,
1080/23.98PsF and 1080/50i.
Features:
-Video Formats 3G: 1080/60p, 1080/59.94p, 1080/50p (Level A/B)
Level-B: At 1920 × 1080 only
HD:
1080/60i, 1080/59.94i, 1080/50i, 1035/60i, 1035/59.94i, 1080/30p,
1080/29.97p, 1080/25p, 1080/24p, 1080/23.98p, 720/60p, 720/59.94p,
720/50p, 720/24p, 720/23.98p, 080/30PsF, 1080/29.97PsF, 1080/25PsF,
1080/24PsF, 1080/23.98PsF
SD: 525/60 (NTSC), 625/50 (PAL)
-Interfaces LAN: 100BASE-TX/1000BASE-T, 1 x RJ-45 (CAT 5e-compliant)
-Viewer Software for video streaming (for Windows only)
-Data Backup Stores settings internally to the memory (approximately 100,000 rewrite capacity)
-Temperature 32 to 144°F (0 to 40°C)
-Humidity 30 to 90% (non-condensation)
-Backup Battery Internal lithium battery (to maintain time)
-Power 100 to 240 VAC ±10%; 50 Hz/60 Hz
-Power Consumption 88 VA (86 W) @ 100 to 120 VAC; 107 VA (85 W) @ 200 to 240 VAC
