Portable 18-In/14-Out Digital Mixer

Lebih Lengkap Mengenai Portable 18-In/14-Out Digital Mixer

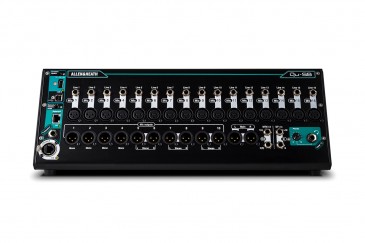

Designed to accommodate a wide variety of live-sound reinforcement and recording scenarios, the Allen & Heath Qu-SB is an 18-in/14-out rack-mountable, console-less digital mixer that doubles as a 32x32 USB recording interface. Featuring 16 of the company's recallable AnalogiQ microphone preamps, and powered by a 5-core ARM processor, the Qu-SB provides a variety of integrated effects and processing, including channel-independent 4-band parametric EQs, compressors, delay, and reverb.

The mixer is compatible with both the ME Personal Mixing System and dSNAKE digital connectivity system from Allen & Heath, which allows for up to 38 inputs. The Qu-SB is designed to be used with the Qu-Pad app, allowing you to use your iPad to mix from anywhere in the venue when connected to a wireless network.

Qu-SB’s sixteen AnalogiQTM total recall preamps feature zero crossing detection and an advanced padless 1dB step gain stage, closely allied to the DSP for optimal gain accuracy and audio transparency. The analogue signal is captured by high class, low latency 24bit analogue to digital converters matched to high quality 24bit digital to analogue converters to deliver the required outputs. The AnalogiQTM design has been refined over many months to offer superb transparency, minimal distortion and an ultra-low noise floor, with a warm, musical sound that is missing from some digital consoles.

Allen & Heath has teamed up with leading microphone manufacturers and top engineers at Audio-Technica, Sennheiser, and Shure to provide EQ Library presets for a large number of popular and industry standard microphones. Presets for vocals, electric guitar, acoustic guitar, drums, brass and woodwind have been painstakingly crafted to offer you the best possible starting point for the source and your microphone of choice. Whether you’re a keen amateur or a seasoned professional, you can get to work quickly and easily, saving valuable time so you can concentrate on EQ’ing the source and room acoustics.
