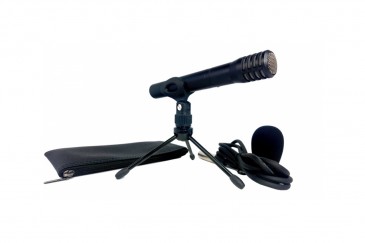

Battery-Powered Condenser Microphone Bundle

Lebih Lengkap Mengenai Battery-Powered Condenser Microphone Bundle

In recording, microphone plays an important role, that is, converting the pneumatic vibration that turns the sound into electric signals. Of course, a preamplifier that amplifies the microphone signals, an AD converter that converts the sound into digital signals, and the DAW software that shapes the sound. All these gears are important after the recording stage. However, these gears work with the sound which has already been converted by the microphone. This means, the quality of a microphone detemine the sound quality of the entire song.

To easily acquire high-precision sound in a home recording environment, why not starting from adding a condenser microphone in your recording gears?
The condenser microphone has a different structure from the dynamic microphone which can be easily seen everywhere. In general, the condenser mic has high-precision, subtle sound quality. Diaphragms are largely divided into large diaphragms and small diaphragms according to the size of diaphragm that converts the sound into electric signals. Small diaphragms are normally used for condenser microphones for their versatility.

Among the TASCAM microphone series that have been tested with the TASCAM products, the TM-60 is the only model that does not require phantom power supply. It is optimum for the mobile environment where phantom power supplies cannot always be provided. It is optimum especially when operating the audio interface by the bus power of PC or when using the condenser microphones by the devices operated by batteries such as DP-008EX or DR-44WL, for it enables to use the condenser microphones without consuming the electric power of the devices.

US-2x2 can be operated by the PC bus power, which can establish the mobile environment just by using it with your note PC. Usually the phantom power is supplied from the note PC, but using TM-60 does not require phantom power so it could save PC battery.

TM-60 is a condenser-type microphone, which is quite different from the dynamic microphone which usually being used in live performances. The diaphragm operates due to the pneumatic vibration. Inside of a dynamic microphone, the voice coil operates with the diaphragm, which increases the weight of the entire part. On the other hand, the condenser microphone incorporates a diaphragm in the either side of the electrode in an electrical part referred to as condenser, realizing a lightweight structure. This allows excellent follow-up performance, greatly contributing to high-precision sound.

Thus the mechanism to convert into electrical signals is completely different between the two: the dynamic microphones are powered by electromagnetic induction to obtain electrical signals, whereas the condenser microphones take out the potential difference between the condenser electrodes as a signal. To give the condenser the potential difference, power supply is required.
