Broadcast Field Mixer

Broadcast Field Mixer
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai Broadcast Field Mixer

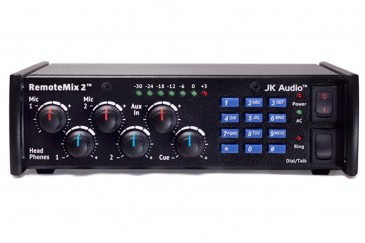

The RemoteMix 2 Broadcast Field Mixer from JK Audio is a two-channel field mixer / headphone amplifier designed for use in remote broadcast environments.

This mixer provides a communications interface for remote broadcast, IFB, or a backup audio path. The integrated headphone amplifier provides sidetone to monitor all inputs as well as an external feed. It also features a phone line hybrid with keypad along with a wired notebook/cell phone headset interface. These parts are designed to work together, saving setup time and wiring in the field. For TV, a phone line for real-time production monitoring can be used. This unit combines a small front-end mixer with two powerful 1/4” headphone outputs. It allows you to send and receive interview audio while pulling IFB off the phone line, cell phone, or notebook.

The RemoteMix 2 is suitable for use with live broadcast remotes. You can use it as a front-end mixer for your POTS, ISDN, IP, or Smart Phone Codec. Additionally, you can use it as a phone line hybrid, calling into your studio talk show hybrid.

Features:

Microphones
-Female XLR
-Impedance 2k ohms
-Level -25 dBu nom
-Mic/Line Pad Switch +6 dBu max
Aux Line In
-1/8" (3.5mm) Stereo
-Impedance 20k ohms
-Level -10 dBu nom
Cue Input
-1/4" Mono
-Impedance 20k ohms
-Level -10 dBu nom
Mix Out
-Balanced Male XLR
-Level +16 dBu max
-Frequency Response 20 Hz - 20 kHz +/- 1dB
-Line Out
-1/8" (3.5mm) Stereo
-Impedance 100 ohms
-Level -10 dBu nom
Headphones
-1/4" Stereo
-Impedance 8 ohms
-Level 1/3 watt per channel
