4 Channel Field Mixer

4 Channel Field Mixer
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai 4 Channel Field Mixer

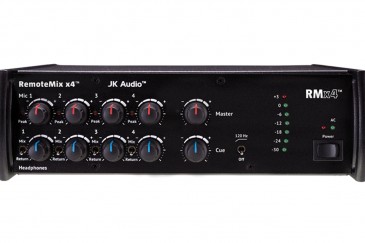

The RemoteMix x4 Field Mixer from JK Audio combines a four-channel field mixer with a four-channel headphone amplifier. The mixer includes four active balanced microphone inputs, direct drive DC coupled with XLR outputs, a soft limiter, and 1/8" send and receive jacks for recording or playing back of recorded material. The RMx4 is designed for news, sports, and live remotes, and can be used as a front-end mixer for your POTS, ISDN, IP, or smartphone.

Features:

Microphones
-Female XLR
-Impedance Mic Level: 2k ohms
-Line Level: 50k ohms
-Level Mic Level: -25 dBu nom
-Line Level: +20 dBu max
-Mic/Line Pad Switch -40 dB
-Phantom Power 48 VDC with 6.8k ohm Supply Resistance
Line Input
-1/8" (3.5mm) Stereo
-Impedance 20k ohms
-Level -10 dBu nom
Headphone Cue In
-1/4" Mono
-Impedance 20k ohms
-Level -10 dBu nom
Master Output
-Balanced Male XLR
-Impedance 50 ohms
-Level +16 dBu max
-Frequency Response 20 Hz - 20 kHz +/- 1dB
-THD 0.04% THD @ +16 dBu
Line Output
-1/8" (3.5mm) Stereo
-Impedance 100 ohms
-Level -10 dBu nom
Headphones
-1/4" Stereo
-Impedance 8 ohms
-Level 1/3 watt per channel
