Monitor
| Harga | Rp 1,00 |
| Ketersediaan Barang | Tak Terbatas |
Lebih Lengkap Mengenai Monitor

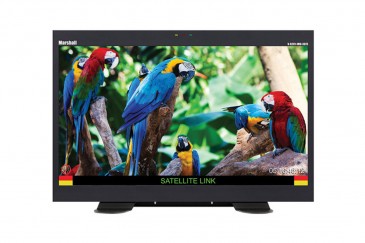

Designed for rack-mounting in a
production truck, the Marshall Electronics V-R201-IMD-3GTE 20" 1600 x
900 Rack Mount Monitor with 3GHD-SDI and In-Monitor Display positions
its front panel buttons on the top of the monitor instead and comes in a
rack mount that allows you to tilt the monitor forward to access the
buttons. Incorporating an in-monitor-display feature that obviates
additional under-monitor-display hardware saves you both space and
expense.
This 20" monitor features a native resolution of 1600 x
900, supporting NTSC and PAL standards, and displays video up to 1920 x
1080. It incorporates a 3G-SDI input and separate 3G-SDI output
connector, as well as a 15-pin din connector for Tally control. With a
178° viewing angle, you can view the monitor from off angle with minimal
shifts in color or contrast. Pixel-to-pixel functionality allows you to
view portions of the image at their native resolution. The monitor
features auto signal detection and can display the audio level bars of
the audio embedded in the SDI signal.
Features:
-This monitor is designed to be rack mounted and places the
control buttons normally found on the front of a monitor along the top
edge. The tilting rack mount assembly allows you access to the buttons.
-The
in-monitor display saves you space in a crowded production truck rack,
while still allowing the monitor to display required information,
settings, and text.
-The 1600 x 900 panel supports 1920 x 1080
signals, scaling them to fit the screen. There are a variety of
adjustments that can be made to scale the displayed image. A 1-to-1
pixel mode allows you to view portions of your image without introducing
scaling artifacts.
-This monitor supports Closed Caption, Tally, auto signal detection, and can display audio level meters.
-RS485/RS422 control is supported via Ethernet in/out connectors with loop-through functionality.
