Digital Monitor Switcher

Digital Monitor Switcher
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai Digital Monitor Switcher

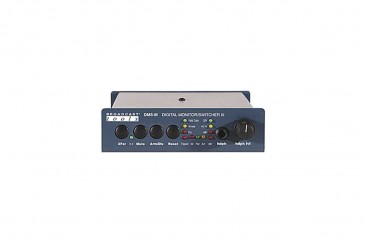

The Broadcast Tools® Digital Monitor & Switcher III is designed to accept and automatically or manually switch two AES signal sources when a digital error and/or analog silence are detected.

Features include: Automatic control function that switches to a back up source upon failure of the main source; Switch functions can be triggered by loss of clock, digital error flags, front panel transfer switch, external switch contact and/or the internal analog stereo silence sensor.

Additional features: Front panel error status and sample rate LED indicators; front panel headphone jack and level control; balanced stereo monitor output; remote control; removable screw terminals; Plug & Play installation; dipswitch selection of precise time delay from 2 seconds to 85 minutes and restore timing delay from off to 10.2 minutes; defeatable sonalert aural alarm; SPDT status relays; SPDT one-second pulse relay. The DMS III may be set on a desktop, mounted on a wall or as part of the new RA-1, RackAble mounting shelf.

Features:

- Analog audio activity LED with silence sensor alarm indicator.
- 96kHz, 24 bit SRC with balanced analog stereo audio output.
- Front panel headphone jack and level control.
- Precise time delay from 2 seconds to 85 minutes.
- Precise restore timing delay from off to 10.2 minutes.
- Front panel “XFER” switch with front panel indicator, remote input and DPDT status relay.
- Front panel “Mute” switch with built-in sonalert and remote mute input.
- Front panel “Arm/Disarm” switch with front panel LED, remote input and SPDT status relay.
- Front Panel Alarm “Reset” switch, Tripped LED and SPDT status relay.
- External (“Ext”) alarm input with front panel indicator and SPDT status relay.
- One SPDT 1 second pulse relay. Great for automatically rebooting external equipment.
- Front Panel Power LED.
- Removable screw (Euroblock) connectors.
- The DMS III may be set on a desktop, mounted on a wall or as part of the new RA-1, “Rack-Able” mounting shelf.
- Optional RA-1 rack shelf for mounting up to three units in 1-RU.
