Paket 4 bay untuk Pemancar Kapasitas 1000 Watt
6 Unit Single Ring Antenna High Power
6 Unit Jumper RG-8
Power Divider DIN Input
Cocok utk Radio Komercial dan Komunitas
Features:
The standard in medium power (1-2KW) circular polarization antennas
Broadband design , For maximum Performance Please order for your working Frequency
High power handling
High Quality Made Alumunium construction
DC short for lightning protection
Maximum penetration in cities and built up areas
Antenna type:Circular Polarization Dipole
Frequency Range:87.5 - 108 MHz
Bandwidth:500 khz
Impedance:50 Ohms
Connectors:600W or DIN for 2000W
Power Rating:2000 Watts max with DIN
VSWR:< 1.2 typical
Polarization:vertical and horizontal ( Circular )
Power Gain:0.5
Front-to-back ratio:3 dB
Lightening protection:all parts grounded
Max wind velocity:200km/h
Wind load:(56 kg)
Wind surface:0.181 m2
Materials (external):Grade Aluminum
Mounting:1 – 2 inch
Weight:5 kg
Dimensions:1500x800x800 mm

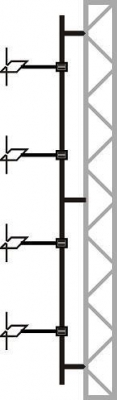

4 bay Circular Single Ring 1kW
Klik pada gambar untuk memperbesar
| Harga | Rp 1,00 |
| Ketersediaan Barang | Tak Terbatas |
Lebih Lengkap Mengenai 4 bay Circular Single Ring 1kW
|
|
|||
