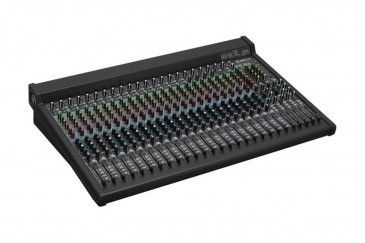

24-Channel 4-Bus FX Mixer with USB

24-Channel 4-Bus FX Mixer with USB
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai 24-Channel 4-Bus FX Mixer with USB

The Mackie 2404VLZ4 24-Channel 4-Bus FX Mixer with USB from the VLZ4 4-Bus Series features Onyx microphone preamps in a high-headroom / low-noise 4-bus design with a feature set suitable for live sound. The mixer is equipped with dual 32-bit RMFX+ effect processors, each with 24 effects including tap delay. It also includes compression on dedicated channels and subgroups that allow for simple, sweet dynamic control.

Additionally, both of the FX processors feature a tap delay and the delays may easily be synchronized with the song at the tap of a finger. The processed signal may be sent directly to the mains and monitors from the effects section or re-routed to the 2 stereo channels to bring them through the EQ and AUX section, utilizing the 60mm fader to draw them into the mix.

The 24-channel, 4-bus FX mixer has 8 single-knob compressors to stop the dynamic signals from poking out of the mix. There are 4 compressors are located on the last 4 microphone inputs so that critical signals (such as vocals, snare drum, guitar or keyboards) may be addressed. In addition, there are single-knob compressors on each of the 4 subgroups so that grouped signals (such as a drum set or a choir of vocalists) may be blended together for paramount smoothness.

This mixer also features a 4 x 2 USB recording and playback function. This means that up to 4 signals may be recorded simultaneously and a stereo mix returned to the mixer for playback. Its built-like-a-tank construction delivers years of reliable use under strenuous conditions. The VLZ4 4-Bus Series offers a compact FX mixer solution in a design that’s flexible, rugged, and professional.

Features:

-Main Mix Noise:
Main Mix Fader at Unity, Channel Faders Down: -87 dBu (-91 dB signal to noise ratio, ref +4 dBu)
Main Mix Fader at Unity, Channel Faders at Unity: -81.5 dBu (20 Hz to 20 kHz bandwidth, 1/4" main out, channel gains at unity, channel EQs flat, all channels assigned to main mix, odd channels panned left, even channels panned right)
-Total Harmonic Distortion (THD) Microphone In to Insert Send: <0.001%
-Microphone In to Main Out: <0.005% (1 kHz at 15 dB gain, 20 Hz to 20 kHz bandwidth)
-Crosstalk / Attenuation Channel Mute Switch Engaged: -90 dBu
-Channel Fader Down: -88 dBu (1 kHz relative to +10 dBu, 20 Hz to 20 kHz bandwidth, microphone in, 1/4" main out, gain at unity)
-Frequency Response Microphone input to main output (gain at unity)
+0, -1 dB, 20 Hz to 50 kHz
+0, -3 dB, <10 Hz to >100 kHz
-Equivalent Input Noise 150 Ω Termination: -128.5 dBu, 20 Hz to 20 kHz
-Microphone input to insert send out, maximum gain
-Common Mode Rejection Ratio Better than -70 dB at 1 kHz
-Maximum Level Microphone In: +21 dBu
-All Other Inputs: +21 dBu
-Main Mix XLR Out: +27 dBu
-All Other Outputs: +21 dBu
-Impedance Microphone In: 2.7 kΩ
-Channel Insert Return: 2.5 kΩ
-All Other Inputs: 10 kΩ or greater
-Tape Out: <10 Ω
-All Other Outputs: 120 Ω
-Equalizer 3-Band EQ (Mono Channels):
-High Shelving: ±15 dB at 12 kHz
-Mid Peaking: ±15 dB sweep 100 Hz to 8 kHz
-Low Shelving: ±15 dB at 80 Hz
-Low Cut Filter: 18 dB/octave, -3 dB at 100 Hz
