Kit with Padded Bag

Kit with Padded Bag
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai Kit with Padded Bag

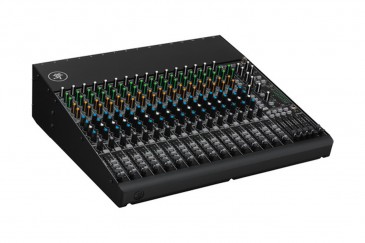

This B&H Kit combines the Mackie 1604VLZ4 16-Channel 4-Bus Mixer with a padded mixer bag to form a mobile mixer solution for bands, theaters, dance troops, bars, and mobile performance applications. The 1604VLZ4 includes a combination of Onyx preamps and a high-headroom / low-noise design. All 16 channels feature a boutique-quality Onyx microphone preamplifier, a 3-band EQ with sweepable mids, a line input, and an insert in a compact 4-bus design built for application flexibility and professional performance. The mixer is built like a tank, with a rugged solid-steel chassis and high-contrast controls for tactile control. It is a band-friendly analog mixer used in professional broadcast and post facilities.

The padded mixer bag is made to carry and protect the 1604VLZ Pro Mixer. The high-impact, high-density rigid internal foam offers drop protection for the mixer.

Features:

-Main Mix Noise:
-Main Mix Fader @ Unity, Channel Faders Down: -88.5 dBu (92 dB signal-to-noise ratio, ref +4 dBu)
-Main Mix Fader @ Unity, Channel Faders @ Unity: -82.5 dBu  (20 Hz to 20 kHz bandwidth, 1/4" main out, channel gains at unity, channel EQs flat, all channels assigned to main mix, odd channels panned left, even channels panned right)
-Total Harmonic Distortion (THD) Microphone In to Insert Send: <0.0007%
-Microphone In to Main Out: <0.005%  (1 kHz @ 35 dB gain, 20 Hz to 20 kHz bandwidth)
-Crosstalk / Attenuation Channel Mute Switch Engaged: -84 dBu
-Channel Gain Knob Down: -84 dBu  (1 kHz relative to 0 dBu, 20 Hz to 20 kHz bandwidth, line in, 1/4" main out, gain @ unity)
-Frequency Response Microphone Input to Main Output (Gain @ Unity):
+0, -1 dB, 20 Hz to 50 kHz
+0, -3 dB, <10 Hz to >100 kHz
-Equivalent Input Noise 150 Ω Termination: -128.5 dBu, 20 Hz to 20 kHz
-Microphone input to insert send out, maximum gain
-Common Mode Rejection Ratio Better than -70 dB @ 1 kHz
-Maximum Level Microphone In: +22 dBu
-All Other Inputs: +22 dBu
-Main Mix TRS Out: +28 dBu
-All Other Outputs: +22 dBu
-Impedance Microphone In: 2.5 kΩ
-Channel Insert Return: 2.5 kΩ
-All Other Inputs: 10 kΩ or greater
-Tape Out: 1.1 kΩ
-All Other Outputs: 120 Ω
-Equalizer High Shelving: ±15 dB @ 12 kHz
-Mid Peaking: ±15 dB sweep 100 Hz to 8 kHz
-Low Shelving: ±15 dB @ 80 Hz
-Low Cut Filter: 18 dB/octave, -3 dB @ 75 Hz
-Power Consumption 50 W, 100 to 120 VAC, 50 to 60 Hz
-Operating Temperature 32 to 104°F (0 to 40°C)
-Fuse Rating 100 to 120V: 1 A slo blo, 5 x 20 mm
-220 to 240V: 0.5 A slo blo, 5 x 20 mm
