Bonded Video Transceiver

Bonded Video Transceiver
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai Bonded Video Transceiver

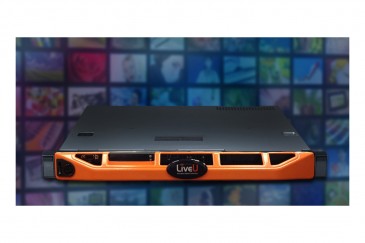

The LU2000 Bonded Video Transceiver unit is used to receive, reconstruct and playout any bonded video stream sent by LiveU’s range of field units, including the LU200, LU400, LU500, LU-Smart and LU-Lite. The LU2000 can also be used as a transmission node when configuring LiveU’s MultiPoint transmission service.

MULTIPLE CONFIGURATIONS
The LU2000 comes in a range of configurations, from hardware-hosted MMH software, to cloud server solutions, and uses LiveU Reliable Transport (LRT), which includes patented Dynamic Adaptive Bitrate control and Forward Error Correction, allowing it to optimize live video delivery to different classes of receiver, dynamically adjusting bitrate and quality for the best viewer experience at any time.

SEAMLESS INTEGRATION
Each LU2000 can receive up to 14 simultaneous LiveU live feeds, allowing the remote operator to select the feed that is actually sent out over SDI for local consumption, or streamed over the network for CDN or any other online video streaming. The LU2000 integrates seamlessly with LiveU’s multi-layered live video ecosystem, allowing operators to monitor and control live streams via LiveU Central, the unified management platform for LiveU’s field and studio unit

Features:

-FORM FACTOR: 1U Rack-mountable server or Virtual Cloud Server
-CONFIGURATIONS: Single/Duo: supports one or two simultaneous SDI outputs; Quad: Supports 4 simultaneous SDI outputs; Up to 4 streaming outputs; RTMP, -Transport Stream over UDP
-SOFTWARE: Pre-installed with software and usage license for LiveU MMH Server
-VIDEO OUTPUT RESOLUTIONS :1080i50/60, 720p50/60/25/30/24, PAL, NTSC
-HW INTERFACES:HD/SD-SDI
-STREAMING SD: Supports 4 transcoded 1.2mbps; HD: Supports 2 transcoded 2.4mbps
-SDI OUTPUT: Single/Duo: 1 or 2, Quad: 4
-NETWORK INTERFACE: 1000/100/10 RJ-45
-POWER SOURCES: 110-240V 50/60Hz
-USER INTERFACE CONTROL: Full control using cloud management via LiveU Central
-PREVIEW: Transcodes and outputs preview via LiveU Central
