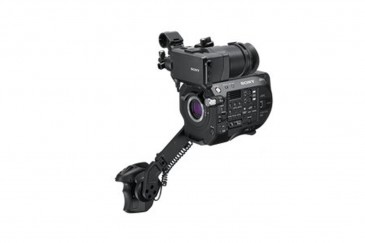

Introduced by Sony in 2014, the FS7 has rapidly become one of the most popular production cameras in the industry. Sony is now expanding its FS series of camcorders by introducing an advanced model, the FS7 II. The original FS7 remains in the lineup. The FS7 II builds upon the proven FS7 platform, adding the latest, state-of-the-art Sony technology, including Electronic Variable ND Filter and a robust "Lever Lock Type" Sony’s E-Mount. Extensive refinements to the viewfinder support system and SmartGrip arm mechanism ensure super-fast and secure "on the run" rig repositioning -- all of this while still retaining the Zen-like simplicity, flexibility and operational comfort of the FS7’s "multi-award winning" industrial design. Sony’s new mount system securely locks E-Mount lenses to the camera body and enables the use of larger, heavier lenses without need for additional support.

This breakthrough is based on a clever combination of advanced material science and ingenious engineering. The Lever-Lock Type E-Mount securely holds E-Mount lenses and adapters to the camera body. In fact, it can hold unsupported: Long, cine and zoom lenses of similar weight to unsupported PL-Mount lenses on the F55 (under static and dynamic loading).  Operating the FS7 II Lever Lock Type E-Mount is similar to operating the PL-Mount common to cinema cameras.

Place the E-Mount lens in the Lever Lock Type E-Mount opening and then, with your free hand, rotate the locking ring in a counterclockwise direction. This securely clamps the E-Mount lens in the mount. When the ring comes to a stop, a secondary latch automatically locks the ring in place to prevent unintentional disengagement. To disconnect the lens, switch off the secondary latch, then rotate the locking ring in the clockwise direction to release the lens.
The viewfinder is the most important camera-operator interface, used for framing every shot. The viewfinder eyepiece, when in use, also provides a contact point for stabilizing the camera while shooting handheld.

The FS7 II’s new stronger, simpler viewfinder support bracket makes possible quick and easy fine-tuning of the viewfinder’s position--or choosing a radical reconfiguration. To simplify operation, the FS7’s original single lever clamp system is replaced by a double clamp with discrete clamping knobs for both front-to-back and vertical height adjustment. This new design facilitates adjusting the viewfinder while shouldering the camera.

Another FS7 II viewfinder bracket innovation is use of square rods which retain LCD horizontal alignment.

Attaching the eyepiece to the FS7 II’s LCD is simpler and easier. The FS7’s eyepiece top latch is replaced by a fixed rectangular steel loop that instantly hooks the eyepiece flush and level, perfectly aligned to the LCD. Just secure the bottom latch and you’re good to go.

The FS7 II’s eyepiece uses an industry-standard 52mm diopter. By removing the rubber eyecup, the original diopter is easily switched out for a diopter matching the operator’s eyeglass prescription. This is a common request of many experienced camera operators.

The FS7 II introduces a collapsible LCD hood for viewing the LCD without the eyepiece.

The FS7 II’s mic holder is no longer permanently attached to the end of the short 15mm rod that acts as a cross bar to join the viewfinder support bracket and the mic holder to the front of the handle. The mic holder’s lever clamp now enables removing, reorienting, or relocating the mic holder.

Furthermore, this short 15mm rod can now be replaced for a longer one that enables relocating the viewfinder eyepiece further out for “left eye dominant” operators.

Another benefit of the FS7 II mic holder removable clamping system is that the viewfinder and mic holder can be transposed in seconds to the opposite side. This enables the operator to comfortably shoot from the camera’s right side. This feature is often requested by experienced 16mm camera operators who once enjoyed the same flexibility from their Aatons and ARRI SRs.
