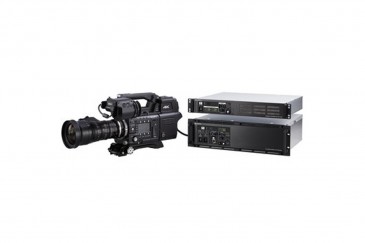

PMW-F55 4K Live Package

PMW-F55 4K Live Package
Klik pada gambar untuk memperbesar
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai PMW-F55 4K Live Package

Expanding the capabilities of the Sony PMW-F55 camera, the PMW-F55 4K Live Package includes a Sony PMW-F55 Camera, and accessories that allow you to integrate the camera into a live 4K/HD production. Included with accessories is a shoulder mount baseplate that allows you to quickly go from hand held operation to tripod mounted on an optional tripod with a VCT compatible quick release adapter. The baseplate features ARRI compatible rosettes and 15mm LWS rods.

The 4K Fiber Transmission Camera Adapter, mounts to your camera and allows you to interface with optional fiber optic cables for signal transmission over a mile away. The base band processor unit accepts the camera's 4K output via the fiber transmission adapter and simultaneously generates 4K and HD signals with a similar color matrix that matches Sony HD camera systems.

The Sony PMW-F55 CineAlta 4K Digital Cinema Camera features an 8.9MP Super 35mm image sensor, capable of capturing 4K, 2K and HD resolution video in a variety of formats via the camera's internal recorder. The F55 is among the first digital motion picture cameras with a global shutter, which completely eliminates motion skew and other "rolling" shutter distortions. Sony has designed the F55 as the foundation of an exceptionally versatile, modular system.

Optional components¹ of the F55 system include bolt-on recording units, a series of digital viewfinders, and camera support rigs. Notably, the AXS-R5 recorder¹ can be mounted onto the rear of the F55, enabling 4K and 2K 16-bit RAW recording and high speed frame rates of up to 240 fps in 2K². In keeping with Sony's mandate on versatility, the F55 will have a native FZ-mount, which will provide an interface for Sony's SCL-Z18x140³ auto focus servo zoom lens as well as a wide range of lens adapters, such as the included PL-mount adapter.

Many digital sensors can match and even surpass traditional motion picture film for resolution and low light image quality, but with approximately 14.3 stops of dynamic range, film has maintained an advantage over most digital sensors. However, the F55's exposure latitude is rated at 14 stops of dynamic range, for truly film-like rendering of highlights and shadows. Moreover, the F55 incorporates the same color filter array technology used in Sony's flagship F65, for a color gamut that is even wider than motion picture film.


-Sony PMW-F55 Specs
-PMW-F55 CineAlta 4K Digital Cinema Camera
-Sensor Type Super 35mm equivalent single-chip CMOS with global shutter
-Pixels Total: 11.6 MP
-Effective: 8.9 MP
-Sensitivity Luminance: 2000 lx, 89.9% reflectance
-Video Gamma: T11@24p (3200K light source)
-S-Log2 Gamma: ISO 1250 (D55 Light source)
-Dynamic Range 14 stops
-Signal to Noise Ratio 57dB (Video Gamma, 24p, Noise Suppression OFF)
-Shutter Speed 1/24s to 1/6,000s
-Shutter Angle 4.2 - 360°(electrical shutter)
-Slow Shutter 2, 3, 4, 5, 6, 7, and 8 frame accumulation
-White Balance Preset (3200K, 4300K, 5500K), Memory, ATW
-Gain -3, 0, 3, 6, 9, 12, 18 dB, AGC
-Gamma Curve Standard (x6)
-HG1, HG2, HG3, HG4, HG7 and HG8
-S-Log2 Gamma
