Full-HD Compact Camcorder 3CMOS

Lebih Lengkap Mengenai Full-HD Compact Camcorder 3CMOS

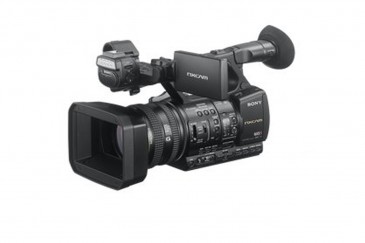

Sony’s HXR-NX5U was a classic: our first NXCAM® camcorder and a landmark in the transition from tape to memory recording. Now that classic is reborn in the form of Sony’s new HXR-NX5R. With enhanced features like Wi-Fi® file transfer, OLED viewfinder and MI Shoe, the NX5R is a worthy successor. It’s the ideal tool for documentaries and corporate assignments, weddings & events, nature, sports and journalist newsgathering.

The NX5R offers latest generation imaging performance, with Full-HD progressive image capture rather than the interlaced output of the original HXR-NX5. Its three 1/2.8-type Full HD Exmor CMOS sensors provide 2.07 million effective pixel count at the 16:9 aspect ratio. Red, blue, and green light are independently captured by separate image sensors, contributing to high resolution, high sensitivity and wide dynamic range. An advanced LSI (featuring intelligent noise reduction, enhanced detail reproduction and distortion correction technologies) delivers remarkably lifelike images.

An easily adjustable LED video light is positioned just above the camcorder’s built-in microphone, providing convenient illumination for a wide range of shooting situations and minimising the need to carry external lighting equipment. Illumination is approximately 200 lux/1m (approx. 800 lux/0.5m) with a beam angle of 30° and a colour temperature of approximately 5500K.

The NX5R takes advantage of Sony’s flexible Multi-Interface (MI) Shoe, which provides power, signal connections and coordinated on/off switching to compatible Sony accessories. For example, you can connect and control Sony wireless microphone systems such as the UWP-D11 or UWP-D12 (sold separately).

To extend recording time and workflow flexibility, the NX5R is equipped with two memory card slots and is compatible with SDXC and SDHC cards as well as Memory Stick PRO Duo (Mark 2) and Memory Stick PRO-HG Duo.

Relay mode automatically switches recording from the first to the second memory card when the first is full; Simul mode allows simultaneous recording to two memory cards (for example to create an immediate back-up version). The NX5R’s two Start/Stop buttons on the handle grip and camcorder body can independently start and stop recording on different memory cards while recording in Simul mode.

The NX5R’S high-performance Sony G lens offers an expansive 28.8 mm (35mm full-frame format equivalent) angle of view at the wide end and a stunning 40X zoom. The 20x optical zoom range will easily cover most shooting situations, but when more reach is required, Sony’s advanced Clear Image Zoom employs Super Resolution Technology to double your optical zoom up to 40x while still delivering exceptional image quality.

Features:

-Imaging Device 3-chips 1/2.8 type "Exmor" CMOS Sensor
-Microphone Omni-directional stereo electret condenser microphone.
-Built-in Optical Filters OFF: Clear, 1: 1/4ND, 2: 1/16ND, 3: 1/64ND
-Effective Picture Elements Approx. 2.07M
-Gain Selection -6, -3, 0, 3, 6, 9, 12, 15, 18, 21, 24, 27, 30 dB, AGC
-Minimum Illumination 50i : 1.0lux(1/25 Shutter Speed, iris/gain Auto) or 60i : 1.2lux(1/30 Shutter Speed, iris/gain Auto)
-Shutter Speed (Time) 1/3 -1/10,000
-Slow & Quick Motion Function 1080p: Frame rate selectable 1.2.3.6.12.25,50 fps
-Operating Temperature 32°F to 104°F
-Power Consumption Approx. 7.5 W (while recording with viewfinder and AVCHD 1080/50i or 60i FX)
-Approx. 7.8 W (while recording with LCD and AVCHD 1080/50i or 60i FX)
-Power Requirements DC In: 8.4V
-Battery: 7.2 V
-Filter Diameter M72 mm
-Focal Length f=4.1 - 82.0mm
-equivalent to f=28.8 - 576mm on 35 mm lens(16:9)
-equivalent to f=35.2 - 705mm on 35 mm lens(4:3)
-Focus AF/MF selectable, 10 mm to ∞ (Wide), 800 mm to ∞ (Tele)
-Image Stabilizer ON/OFF selectable, shift lens
-Iris F1.6 - F11 auto/manual selectable
-Zoom Ratio Selectable 20x (optical), servo/manual
-Audio In XLR-type 3-pin (female) (x2), line/mic/mic +48 V selectable-
-Audio Out Stereo mini jack (x1)
-Composite Video Out BNC (×1), Composite 1.0Vp-p, 75 Ω
-DC In DC jack
-Digital Audio/Video Output(s) HDMI connector - Type A (1)
-Earphone Stereo mini jack (x1)
-Remote Stereo mini mini jack (x1)
-SDI Out BNC type (x1), SD/HD/3G(Level-B) selectable SMTPE 259M/292M/424M/425M standards
-USB Multi/Micro USB jack (x1)
