Multiformat Camera System

Lebih Lengkap Mengenai Multiformat Camera System

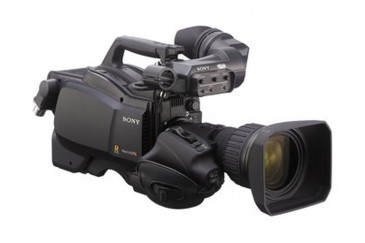

The Sony HSC-300RF Optical Fiber Broadcast Camera is an HD/SD camera with an optical fiber CCU input that supports cable runs up to 6,562 ft to an optional CCU. The camera features a 2/3" type CCD sensor offering F10 sensitivity for 1080i59.94 and F11 for 1080i50, with -60dB signal-to-noise ratio. It also records in 720p and 1080PsF and down-converts to high-quality SD. An optional HZC-PSF3 software is required for 1080/29.97PsF/25PsF. The lens mount is Sony Bayonet. Inputs/outputs include XLR audio, XLR mic, HD/SD-SDI output, VF signal, return signal, SDI prompter output/genlock input/return input, and XLR intercom. The HSC-300RF supports large lenses via Sony HDLA-1500, HDLA-1505, and HDLA-1507 large lens adapters, and it features built-in Neutral Density and Color Correction optical servo filters that can be remotely controlled using an RCP or MSU. The adapters and controllers are sold separately.

A 16-bit A/D converter processes images with very high color precision. A Digital Extender function expands an image by a factor of two in the center of the sensor's captured image without any decrease in sensitivity. Auto Lens Aberration Compensation 2 automatically reduces chromatic aberration by horizontal and vertical compensation when using lenses that support this function. Seven standard-gamma and four hyper-gamma tables are available for use in adjusting contrast. A Multi-Matrix function applies color adjustments over a user-specified color range, and Adaptive-Matrix enables color conversion even when shooting under excessively strong ambient light. Master White Gain allows step-less gain level adjustments. Two types of focus assist are available -- Viewfinder Detail adds dedicated edge signals to the viewfinder, allowing easy recognition of a focusing point, and Focus Assist Indicator displays an indicator for adjustment at the bottom or elsewhere within the viewfinder frame.

The main chassis is made of durable magnesium-alloy casting. An integrated shoulder pad is adjustable back and forth without any tools. A protrusion on the front of the carrying handle allows added stability while shooting, and a non-slip structure on the handle's lower surface provides better grasp. Assignable switches are available on the side and rear panels and assignable buttons on the handle.

The HSC-300RF records in 1080/59.94i/50i, 720/59.94p/50p, and 1080/29.97PsF/25PsF (an optional HZC-PSF3 software is required for 1080/29.97PsF/25PsF). A 2/3" type full-resolution 1920 x 1080 CCD sensor offers a high F10 sensitivity for 59.94 Hz and F11 for 50 Hz, with a signal-to-noise ratio of -60 dB. The HSC-300RF features an optical fiber CCU input/transmission system that offers cable runs up to 6,562 ft between the camera and optional CCU.
