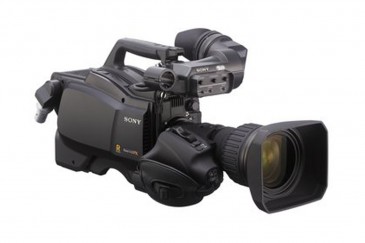

The HSC-300R is HD studio and system camera system that is equipped with three 2/3" CCD imagers and offers low-latency digital Triax transmission at 1080 @ 59.94i/50i and 720 @ 59.94P/50P. Utilizing the new imagers, 16-bit A/D and DSP LSI, the picture performance of the camera system has greatly been improved from its predecessor, HSC-300K. The HSC300R has the same connector arrangement as the HSC300K camera system, and thus it can be operated with the HDLA studio build-up kit. By installing the optional multi-camera control software (HZCU-MC3) to its camera control unit, HSCU-300R, the system can be controlled via MSU (Master Setup Unit).

The Sony HSC-300R Digital Triax Broadcast Camera is an HD/SD camera with a digital triax CCU input. The triax system integrates into conventional triax-based infrastructures, allowing upgrades from existing systems, and supports cable runs up to 5,905 ft to an optional CCU. The camera features a 2/3" type CCD sensor offering F10 sensitivity for 1080i59.94 and F11 for 1080i50, with -60dB signal-to-noise ratio. It also records in 720p and 1080PsF and down-converts to high-quality SD. An optional HZC-PSF3 software is required for 1080/29.97PsF/25PsF. The lens mount is Sony Bayonet. Inputs/outputs include XLR audio, XLR mic, HD/SD-SDI output, VF signal, return signal, SDI prompter output/genlock input/return input, and XLR intercom. The HSC-300R supports large lenses via Sony HDLA-1500, HDLA-1505, and HDLA-1507 large lens adapters, and it features built-in Neutral Density and Color Correction optical servo filters that can be remotely controlled using an RCP or MSU. The adapters and controllers are sold separately.

A 16-bit A/D converter processes images with very high color precision. A Digital Extender function expands an image by a factor of two in the center of the sensor's captured image without any decrease in sensitivity. Auto Lens Aberration Compensation 2 automatically reduces chromatic aberration by horizontal and vertical compensation when using lenses that support this function. Seven standard-gamma and four hyper-gamma tables are available for use in adjusting contrast. A Multi-Matrix function applies color adjustments over a user-specified color range, and Adaptive-Matrix enables color conversion even when shooting under excessively strong ambient light. Master White Gain allows step-less gain level adjustments. Two types of focus assist are available -- Viewfinder Detail adds dedicated edge signals to the viewfinder, allowing easy recognition of a focusing point, and Focus Assist Indicator displays an indicator for adjustment at the bottom or elsewhere within the viewfinder frame.

The main chassis is made of durable magnesium-alloy casting. An integrated shoulder pad is adjustable back and forth without any tools. A protrusion on the front of the carrying handle allows added stability while shooting, and a non-slip structure on the handle's lower surface provides better grasp. Assignable switches are available on the side and rear panels and assignable buttons on the handle.

Features:

-Built-in-Filters CC A: CROSS, B: 3200 K, C: 4300 K, D: 6300 K
-ND 1: CLEAR, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND
-Effective Pixels 1920 x 1080
-Lens Mount Sony Bayonet Mount
-Pickup Device 3-chip 2/3-inch type CCD's
-Registration N/A
-S/N Ratio -60 dB (typical)
-Servo Filter Control N/A
-Shutter Speed 1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000 (s) (59.94i mode)
-1/60, 1/125, 1/250, 1/500, 1/1000, 1/2000 (s) (50i mode)
-Spectrum System F1.4 prism system
-HD/SD Triax CCU Input Broadcast Camera
-Supports Existing Triax Infrastructures
-Supports Triax Cable Runs Up to 5,905 ft
-2/3" Type CCD Sensor
-F10 Sensitivity for 1080i59.94, -60dB
-Large Lens Support via Optional Adapters
-ND/CC Dual Optical Servo Filters
-Records 1080i59.94/50, 720p, 1080PsF
-SD Down Converter
-16-Bit A/D Converter
