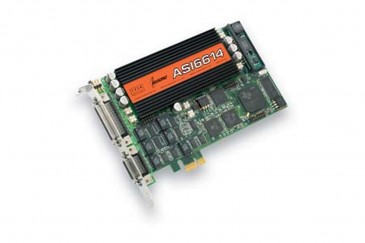

PCI Express Sound Card

PCI Express Sound Card
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai PCI Express Sound Card

The ASI6614 and ASI6618 are professional PCI-Express sound cards designed for use in radio broadcast automation.Providing up to 16 play streams that are mixed to 4 (ASI6614) or 8 (ASI6618) stereo outputs and up to 2 record streams fed from one stereo input, the ASI6614 and ASI6618 feature AudioScience’s unique “anything to anywhere” mixing and routing.

The ASI6614 and ASI618 provide both balanced analog and AES/EBU inputs and outputs. The maximum analog input and output level is +24dBu.

A choice of uncompressed PCM, MPEG layer 2 and MP3 is available for both recording and playback. All compression is handled by an on-board floating point DSP, allowing the host computer to focus on other tasks.

ASI6614 and ASI6618 functionality includes MRX™ multi-rate mixing technology that allows streams of different sample-rates and formats to be mixed digitally. TSX™ time scaling allows compression/expansion of any or all playback streams in real time with no change in pitch.

For emerging surround sound applications, SSX2™ mode allows multichannel streams of up to 8 channels to be played and mixed.

Features:

-TSX™ time scaling by up to +/-20%
-SSX2™ mode for multichannel playback and mixing
-Balanced stereo analog I/O with levels to +24dBu
-24bit ADC and DAC with 110dB SNR and 0.0015% THD+N
-AES/EBU I/O with sample rate converters on all inputs
-Dedicated AES/EBU and Word clock Sync input
-SoundGuard™ transient voltage suppression on all I/O
-Short length PCI card format (6.6 inches/168mm)
-Up to 4 cards in one system
-Windows and Linux software drivers available
