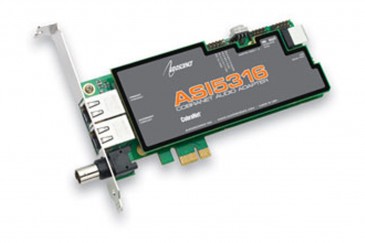

PCI Express CobraNet Sound Card
| Harga | Rp 1,00 |
| Ketersediaan Barang | Tak Terbatas |
Lebih Lengkap Mengenai PCI Express CobraNet Sound Card
The ASI5308, ASI5316, and ASI6316 are
professional PCI Express CobraNet sound cards designed for use in the
installed sound and entertainment markets.Using Cirrus Logic's CobraNet
technology for streaming audio over Ethernet, the ASI5308 provides 8
channels of CobraNet receive and transmit and the ASI5316/ASI6316
provides 16 channels of CobraNet receive and transmit. They can be
connected to any CobraNet-compliant device and have dual-redundant
CobraNet interfaces.
The ASI5308, ASI5316, and ASI6316 are based
on the TMS320C6713 VLIW floating point DSP connected to a high-speed
bus-master PCI Express interface.
AudioScience's MRX technology
allows up to 8 (ASI5308) or 16 (ASI5316/ASI6316) streams of different
formats and sample rates to be played, recorded, and mixed over
CobraNet. For the ASI5308/ASI5316, a choice of 8, 16, 24, and 32bit PCM
is available on all streams. For the ASI6316, a choice of PCM, MP3, or
MPEG layer 2 compression is available on all streams.
AudioScience
provides ASIControl, an application that allows CobraNet routing
connections to be set up between the ASI5308, ASI5316, and ASI6316 and
any other compliant CobraNet device on the network. Alternatively, third
party CobraNet design and management software may be used.
Features:
-MRX technology supports recording, playing and mixing of multiple stream formats and sample rates
-TSX time scaling allows compression/expansion of play steams by up to +/-20% with no pitch shift
-Low Profile PCIe card allows use in 2U high rackmount computers
-Up to 8 cards in one system
-Windows and Linux software drivers available
