US-32 Audio Interface for Online Broadcasts

Lebih Lengkap Mengenai US-32 Audio Interface for Online Broadcasts

Designed for personal and aspiring broadcasters and gamecasters (i.e. those who broadcast their gaming prowess over the web), the Tascam MiNiSTUDIO Personal US-32 is a high-speed USB 2.0 interface. It's capable of capturing 24-bit/96 kHz audio, compatible with Mac and Windows computers, works with most DAW software, and can even interface with iOS devices using an adapter (available separately). With its intuitive layout and various inputs for recording the human voice, it's suitable for those looking to get into podcasting, gamecasting, and broadcasting—though its included software and high-resolution digital capacity renders it useful for all levels of broadcasters as well.

For inputs, the US-32 sports a combination XLR/TRS input, a 3.5mm jack suitable for headset mics, and an auxiliary 3.5mm stereo input most agreeable for looping in the signal of consumer-grade audio equipment. A built-in omnidirectional condenser mic bypasses the need for extrinsic microphones, should you wish to speak directly into the interface. The unit provides two headphone outputs—one 1/4", one 3.5mm—as well as 48V phantom power for condenser microphones and support for 4-pole headphone/mic configurations.

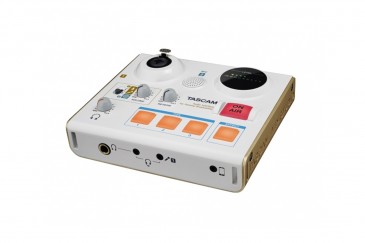

The US-32 features an efficient hardware layout that clearly displays its various features. Glancing at the tabletop interface, you'll see the combo XLR / 1/4" jack on the left, the built-in microphone in the center, and a sizable level meter to monitor the incoming signal. The reverb-blend knob sits prominently between the input-selector switch and on-air button, which commences transmission to your computer or device.

The lower portion of the interface clearly shows its output knob, three pads for triggering on-board sound effects, and an effect on/off pad. Thus, while creating your personal broadcast, you'll have the tools you need to keep the show running at your fingertips.

Features:

-Resolution and Sample Rate Up to 24-bit/96 kHz
-Driver Support Windows (ASIO/WDM), Mac (Core Audio)
-Computer Connection USB 2.0
-iOS Compatibility Yes, with Apple Lightning-USB camera adapter (available separately)
-DSP Effects Equalizer, compressor, reverb, and voice effects
-Trigger Pads 3x (triggers on-board sounds: "Yes" chime, "No" buzzer, and "Applause"), user-assignable via included software
-Powering USB bus-powered
-Built-In Microphone Omni-directional condenser
-Inputs 1 x XLR / 1/4" TRS input
-1 x 3.5 mm input
-1 x 3.5 mm stereo auxiliary input
-Outputs 1 x 1/4" stereo headphone output
-1 x 3.5 mm stereo headphone output
