8-Track Digital Pocketstudio

Lebih Lengkap Mengenai 8-Track Digital Pocketstudio

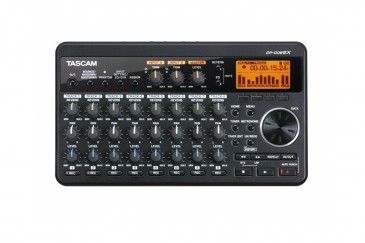

The DP-008EX 8-Track Digital Pocketstudio from Tascam is a compact, battery-powered multitrack recorder, featuring two built-in omnidirectional condenser microphones and WAV file resolution up to 16-bit/44.1kHz. Additionally, two balanced XLR inputs and two unbalanced 1/4" TS inputs can be used to record mic, line or Hi-Z instrument signals. The XLR inputs have switchable +48V Phantom power. Designed with analog functionality and dedicated control knobs, the DP-008EX is ideal for on-the-spot recording. A Mini USB 2.0 output facilitates high-speed file transfer to your Mac or PC.

The DP-008EX features onboard effects on all its input channels. Compressor, 2-band shelving EQ, de-esser and exciter are available on each track. Additionally, the DP-008EX has six different types of reverb built-in. Mastering effects for the stereo mix are also included, offering 2-band EQ, multi-band compression and normalizing. An Auto Analysis Mastering tool is also included, making the process easy, just choose between Natural or Maximum.

The DP-008EX provides a line output on a stereo pair of RCA jacks, as well as an 1/8" stereo headphone output. An integrated chromatic tuner and metronome help you perfect your performance. For elongated battery life, the DP-008EX is compatible with Tascam's BP-6AA external battery pack. It can also be powered by the PS-P520 AC adapter. Both alternative powering solutions are sold separately.

Features:

-Connectors 2 x XLR balanced
-Input Impedance 2.4kΩ
-Nominal Input Level -8 dBu
-Maximum Input Level +8 dBu
-Connector 2 x 1/4" TS unbalanced
-Input Impedances Switchable:
-≥ 10kΩ mic/line
-1MΩ guitar
-Nominal Input Level -10 dBV
-Maximum Input Level +6 dBV-
-Headroom 16 dB
-Frequency Response 20 Hz to 20 kHz +1/-3 dB
-Distortion < 0.05%
-Signal-to-Noise Ratio > 81 dB
-Power Requirements 4 x AA batteries (alkaline or NiMH)
-TASCAM PS-P520 AC adapter (sold separately)
-Battery Life (approx.) 5.5 hrs alkaline, 6.5 hrs NiMH (using line input/recording)
-6 hrs alkaline, 7 NiMH (using headphone/playback)
-Power Consumption 2.4W maximum
-Operating Temperature Range 41 to 95°F (5 to 35°C)
