VoIP/PBX Digital Hybrid

VoIP/PBX Digital Hybrid
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai VoIP/PBX Digital Hybrid

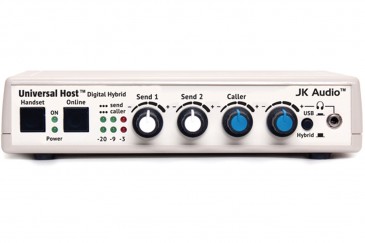

The Universal Host from JK Audio is a desktop digital hybrid telephone interface ideal for use with radio interviews and other conversation capturing and broadcasting applications. The system works with IP and PBX telephones, and connects easily between the phone's base and handset.

You can connect a dynamic microphone and set of headphones to the Universal Host to capture your voice at full quality, maintaining separation between your voice and the caller. The Universal Host has a USB audio codec, and supports recordings at 16-bit/48kHz resolution. It puts your voice on the left channel, and the caller on the right. You can also play recordings from your computer directly into the phone system.

The Universal Host's DSP technology continuously monitors both incoming and outgoing audio to deliver terrific separation. A proprietary echo cancellation algorithm provides this separation without setup, and without sending a noise burst down the line. The Universal Host has connectors for a mic, headphones, mixer, sound card, and telephone, allowing you to fully integrate it into your studio. The unit's rear stereo output puts your voice and the caller's voice on separate channels, while the XLR output has only the caller's voice. Handset and Online buttons allow you to choose between speaking on the handset or through the Universal Host's connections. A second switch lets you monitor either the caller or the USB audio through the headphone connector.

Features:

Send 1
-Balanced Female XLR
-Impedance 1k ohms
-Level 15 mV RMS (-34 dBu nom)
-Mic/Line Pad Switch +6 dBu max
Send 2
-1/8" (3.5mm) Mono
-Impedance 20k ohms
-Level 250 mV RMS (-10 dBu nom)
Caller Out
-Balanced Male XLR
-Impedance 200 ohms
-Level 500 mV RMS (-4 dBu nom, +14 dBu max)
-Caller Only
Stereo Out
-1/8" (3.5mm)
-Impedance 50 ohms
-Level 250 mV RMS (-10 dBu nom, +6 dBu max)
-Left = Send, Right = Caller
Headphone
-1/8" (3.5mm)
-Impedance 8 ohms
-Level 250 mW
-Mixed Send and Caller
