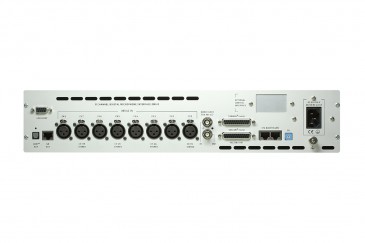

Multi-Channel Audio Interface EtherSound
| Harga | Rp 1,00 |
| Ketersediaan Barang | Tak Terbatas |
Lebih Lengkap Mengenai Multi-Channel Audio Interface EtherSound
The Multi-Channel Audio Interface EtherSound MCA-ES provides remote control for eight DMI-8 via EtherSound and feeds their digital audio data into an EtherSound network. Providing a control bus (RS 485) for transmitting and processing bidirectional control data. For this purpose Neumann supplies the RCS remote control software for use with a PC or Mac.
Features:
-EtherSound ports IN/OUT: 2x RJ 45, ES100 is limited to
sampling frequencies of 44.1/48 kHz by the included Auvitran EtherSound
module (higher sampling frequencies on request).
-GN inputs: 8x RJ
45, DMI-8 audio data using sample frequencies of 44.1 / 48 / 88.2 / 96 /
176.4 / 192 kHz and power supply for the MCA-ES
-MCA-ES
Synchronization: Automatically to the EtherSound network connected to
the IN port or as primary master of the network to an external word
clock or AES11 signal, if present, otherwise the internal word clock
generator is activated
-Word clock (or AES11) input: BNC, Vin: >100 mV at 75 ohms
-Word clock (or AES11) output: BNC, Vout: approx. 1.5 V at 75 ohms (internal word clock generator)
-Internal word clockgenerator:: 44.1 / 48 / 88.2 / 96 kHz/ 176.4 / 192 kHz Accuracy ±25 ppm
-Indicators: Power, ES Network Status, Ext Word Clock, Word Clock Frequency, Valid GN 1..8
-Control
bus: 2 x RJ 45 ports; connection to the DMI-8 respectively the computer
USB port via the Neumann USB 485 interface converter; connected in
parallel
for the purpose of cascading.RS 485 with additional power-out pin (approx. +11.3 V, max. 500 mA)
-Device address (ID): 0 to 15, adjustable via coding switch on the back of the device
-Power supply: DC 15 V
-Power consumption: < 6 VA
