Audio Mixing Console

Audio Mixing Console
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai Audio Mixing Console

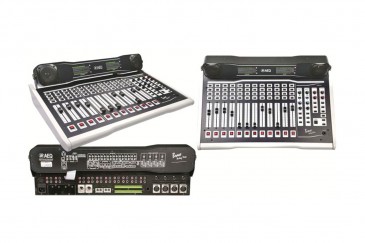

At NAB 1996, AEQ launched the affordable and ‘Cool Stuff' award-winning BC-300 audio mixer for broadcasting. This console was designed to offer professional technology and features; it delivers the highest sound quality while working 24 hours a day 7 days a week at an affordable price suitable for small and medium sized radio stations.

Building on this highly successful product, AEQ is now launching its replacement, the AEQ BRAVO. While meeting the same basic requirements of the BC-300, the BRAVO incorporates user suggestions and many other new features.

The BRAVO TT is the tabletop version. Also available in a flush-mount configuration (BRAVO CS) for mounting into custom woodwork.

Features:

Input Channels

4 Mic/Line channels:

-Electronically balanced mic input.
-Asymmetrical line input.
-Mic/line switch.
-100 mm VCA fader.
-CUE button.
-Telephone send button.
-Master and Audition send buttons.
-Channel ON/OFF button.
-XLR female (Mic.) and RCA phono (Line) connectors.
-Fine adjustment for input gain.

8 Stereo Line Channels:

-Asymmetrical stereo inputs.
-Line input A / B switch.
-100mm VCA fader.
-CUE button.
-Telephone send button.
-Master and Audition send buttons.
-Channel ON/OFF button.
-RCA phono connectors.
-Fine adjustment for input gain.

Output Features:

-Program + Audition transformer balanced stereo outputs (XLRmale + Hartmann), with level preset.
-Balanced Control Room Monitor stereo output with control level.
-10 W stereo output for Studio Monitor. Program / Audition /CUE selectable.
-10-W stereo loudspeakers on VU meter bridge.
-Three stereo recording outputs (RCA connector) with level preset.

Auxiliary Input Features:

-External stereo input with level preset. RCA connectors.
-Internal jumpers for Programme/CUE send.
-Telephone ChannelTwo telephone line Inputs (RJ11).
-Two built-in telephone analogue hybrids with C and R control. Switchable to use external hybrid with RJ11 and strip
-connectors for telephone handset.
-Program/Audition/CUE send.
-Volume pot.
-Return from input channels or talkback
-Incoming call buzzer and LED indicator.
-Hold switch.

Other:

-Talkback microphone with send buttons to telephone and studio headphones.
-DC Studio and cue light signalling. Strip connector output.
-Two stereo VU-meters: Program and Select.
-Studio monitors muting.
-POWER SUPPLY: Autorange 100-240 V. 100 VA 50-60 Hz.
-APPROX WEIGHT: 10 KG (22 lbs).
