Multi Format Routing Switcher
| Harga | Rp 1,00 |
| Ketersediaan Barang | Tak Terbatas |
Lebih Lengkap Mengenai Multi Format Routing Switcher

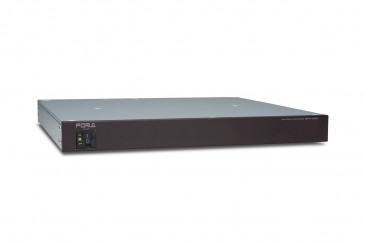

The MFR-1616 Multiformat Routing Switcher is a crosspoint switcher, which supports SD/HD/3G-SDI and ASI signals.
The
MFR-1616 comes with 16 x inputs and 16 x outputs, and is designed for
small and medium-scale routing systems. It accepts multiple input
formats concurrently, while switching signals from any input to any
output.
It automatically recognizes the input signal and
configures the output port. The MFR-1616 can be controlled manually by
optional FOR-A Remote Panels.
Features:
-Video Formats 3G
1920 x 1080p 50/59.94/60/60p
HD
1920 x 1080i 59.94/60
1920 x 1080p 23.98/24/15/29.97/30
1920 x 1080PsF 23.98/24/25/29.97/30
720p 50/59.94/60
SD
525/60
625/50
-Interface - Connectors LAN to RU
10/100BASE-TX, RJ-45 x 1 (for connecting up to 128 RU/GPI units)
LAN to PC
10/100BASE-TX, RJ-45 x 2 (for PC operation)
Serial
RS-232C/RS-422 (Selectable by internal switches)
1x 9-pin D-sub (Male)
Alarm
1x 9-pin D-sub
-Power Supply (AC) Internal
100 to 240 VAC, ±10% 50/60Hz
-Power Consumption 50 VA
-Temperature & Humidity Temperature 32 to 104°F (0 to 40°C)
-Humidity 10% to 90%
