SDI to VGA Converter

SDI to VGA Converter
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai SDI to VGA Converter

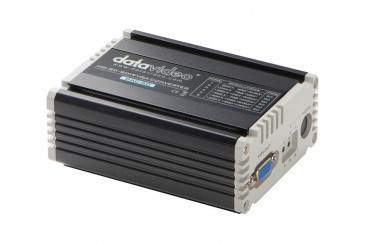

The Datavideo DAC-60 SD/HD/3G-SDI to VGA Scaler and Converter converts SD/HD/3G-SDI video signals into VGA signals for display on computer peripherals such as projectors and monitors. The DAC-60 features a loop-through input that passes the SDI input signal downstream without changing it. This allows you to feed the same video signals to both VGA and SDI based equipment. The unit auto detects the input format and scales it to the user selected VGA output format, which is indicated by the six LEDs.

With the included software you can set the built-in processing amp (proc amp) to adjust Contrast, Hue and Saturation of the VGA signal. The SDI loop-through signal is unaffected by the proc amp settings. The unit is designed to be portable as it draws only 500 mA at 12 volts and weighs less than a pound.

The DAC-60 is compatible with NTSC/PAL SD signals, as well as HD-SDI and 3G SDI signals. The unit will automatically detect scale and convert the input video signals into VGA compatible signals for display on VGA-based equipment.

The DAC-60 has a built in proc amp for image adjustment which are controllable via the included Windows software. Once image adjustments to the VGA output are complete, you can disconnect the DAC-60 from the computer and the unit will retain the image adjustment settings. Only the VGA output is affected and the SDI loop-through signal is unaffected by the proc amp.

Features:

-Inputs/Outputs Input:
1 x BNC 75Ω
-Output:
1 x VGA
-Loop Through Output:
1 x BNC 75Ω
-Formats Input:
SD/HD/3G-SDI
-Output:
VGA
-Loop Through:
SD/HD/3G-SDI
-Input Resolutions:
SD
NTSC: 720 x 480i
PAL: 720 x 576i
-HD:
1280 x 720 50p, 60p, 59.94p
1920 x 1080 50i, 60i, 59.94i
1920 x 1080 24p, 25p, 30p
3G
1920 x 1080 50p, 60p, 59.94p
-Output Resolution:
VGA
800 x 600 60Hz
1024 x 768 60Hz
1280 x 1024 60Hz
1366 x 768 60Hz
1400 x 1050 60Hz
1600 x 1200 60Hz
