SDI to Analogue Converter
| Harga | Rp 1,00 |
| Ketersediaan Barang | Tak Terbatas |
Lebih Lengkap Mengenai SDI to Analogue Converter

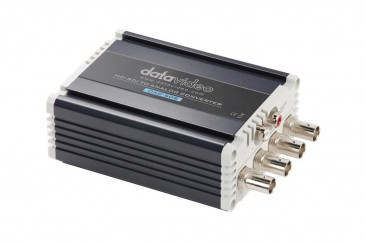

The DAC-50S from Datavideo is an
HD/SD-SDI to Analog converter with the ability to scale both up and
down. The converter has low power consumption and low heat dissipation.
It supports a wide range of 3G video formats, including 1080p
50/59.94/60Hz (DAC-8P/9P/60/70), and supports YUV and RGB color space
(DAC-8P/9P/60/70). The DAC-50 is housed in a rugged metal frame, and can
be rack-mounted using the optional RMK-2 2RU rack mount kit. This unit
provides an SDI cable drive and features reclocking and video
equalization.
The outputs can be easily connected to an analogue video monitor or deck devices such as BataCAM and VHS.
The DAC-50S down scales the signal for the analogue output.
The DAC-50S also provides an SDI Loop-thru output.
It
further outputs one pair of analogue audio channels selected from 16
de-embedded SDI audio channels (Selection is determined by DIP switch
settings).
The DAC-50S is housed in a rugged aluminum frame, making it durable enough to endure the roughest conditions.
Ideal for use with RMK-2 (Rackmount kit) and also MB-4 Battery holder.
Features:
-Conversion: HD/SD SDI to Analog
-Connectors:
1 x HD/SD-SDI, video input
2 x Composite, video output
1 x YUV, video output
1 x Composite or Y/C, video output
2 x RCA, L/R stereo audio output
-Supported Video Formats 720p (50/59.94Hz), 1080i (50/59.94Hz), 1080p (50/59.94Hz)
-Output Resolution 480i, 576i
-Power 12 VDC, 6 W
