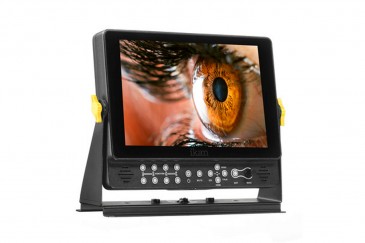

9" Full HD Plus 3G-SDI On-Camera Field Monitor w/ Scopes

9" Full HD Plus 3G-SDI On-Camera Field Monitor w/ Scopes
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai 9" Full HD Plus 3G-SDI On-Camera Field Monitor w/ Scopes

The Ikan VX9w monitor produces dazzling imagery with its Full HD-Plus IPS screen. The monitor is loaded with all the features professionals need to get the right shot every time. The fully aluminum chassis with Gorilla Glass ensures that it can survive the daily rigors of the most demanding sets. No more having to worry whether you got the shot or not. The VX9w has the most common software features including false color for exposure and peaking for focus. In addition, it has advanced features such as waveform, vectorscope, RGB Parade, and audio levels. Everything you need is at your fingertips with eight (8) programmable function keys.

Features:

Specs:
SUPPORTED VIDEO SIGNALS
-3G-SDI 2048x1080psf @ 23.98, 24, 25, 29.97, 30 Hz
-1920x1080p @ 50, 59.94, 60 Hz (4:2:2 YCBCR)

HD-SDI 1280x720p @ 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 Hz (4:4:4 YCBCR)
-1920x1080i @ 50, 59.94, 60 Hz (4:4:4 YCBCR)
-1920x1080psf @ 23.98, 24, 25, 29.97, 30 Hz (4:4:4 YCBCR)
-1920x1080p @ 23.97, 24, 25, 29.94, 30 Hz (4:4:4 YCBCR)

SD-SDI 720x480i @ 60Hz (4:2:2)
-720x576i @ 50Hz (4:2:2)

HDMI 720x480i @ 60 Hz
-720x576i @ 50 Hz
-1280x720p @ 23.97, 24, 25, 29.94, 30, 50, 59.94, 60 Hz
-1920x1080i @ 50, 59.94, 60 Hz
-1920x1080psf @ 24, 25, 29.97, 30 Hz
-1920x1080p @ 23.98, 24, 25, 29.97, 30, 50, 59.94,60 Hz

Component 720x480i @ 60 Hz
-720x576i @ 50 Hz
-1280x720p @ 23.97, 24, 25, 29.94, 30, 50, 59.94, 60 Hz
-1920x1080i @ 50, 59.94, 60 Hz
-1920x1080psf @ 24, 25, 29.97, 30 Hz
-1920x1080p @ 23.97, 24, 25, 29.94, 30 Hz

Composite NTSC-M, NTSC-J, NTSC 4.43
-PAL B/G H I D, PAL M, PAL N
-SECAM

-Aspect Ratio: 16 x 10
-Brightness: 450 cd/m2
-Build Material: Aluminum
-Color System: PAL/NTSC/SECAM (Auto-Detected)
-Contrast Ratio: 900:1
-Display Technology: IPS
-Inputs: 3G-SDI, HDMI, Component, Composite
-Operating Temperature: 0°C ~ 50°C (32°F ~122°F)
-Operating Volts: DC 7 to 24V
-Outputs: 3G-SDI, HDMI, Component, Composite
-Pixel Pitch: 0.09975 × 0.09975 (mm)
-Power Consumption: 8.5 Watt
-Resolution: 1920 x 1200
-Response Time: 16 ms
