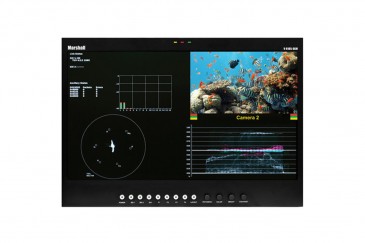

The Marshall Electronics V-R185-DLW Dual Link Desktop/Rack Mount Monitor (18.5"), with an LED-backlit panel, contrast ratio of 1000:1, and a brightness rating of 300 cd/m2, produces high quality images at a resolution of 1366 x 768. A wide viewing angle of 178° (L/R, U/D) ensures that you can view images clearly from any corner of the room or when the display is mounted at a height. The V-R185-DLW monitor features a 10-bit error free video path and supports 3G capability.

With the multi-mode function, the dual link monitor splits the screen into 4 quadrants and allows you to view signal Input information (Link Status), embedded audio levels, a Waveform monitor, a Vectorscope and live video at the same time. Besides, the monitor enables you to view waveform monitor, vectorscope, SDI Link status and video individually with the help of additional layouts. The Waveform monitor allows for viewing digital video components in YUV/RGB color space, displayed in parade or overlay mode. In addition, the waveform monitor offers facility to view waveform in different aspect ratios, positions, and transparency options. With the built-in vectorscope, you can view the X-Y plot of 2 signals and observe the color gamut (subset of colors) in real time. In addition, signals can be displayed in various sizes, positions, and transparency options.
