17.3" HD/SD TFT LCD Monitor - 7U Rackmount Unit
| Harga | Rp 1,00 |
| Ketersediaan Barang | Tak Terbatas |
Lebih Lengkap Mengenai 17.3" HD/SD TFT LCD Monitor - 7U Rackmount Unit

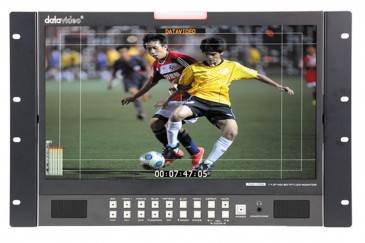

The Datavideo TLM-170GR monitor is
designed for superior performance. Whether your application is in a live
production gallery, 19" rack monitoring, 12V OB truck or a video
editing suite the TLM-170GR will help you confidently monitor the
pictures within your chosen workflow.
The Datavideo TLM-170GR
monitor has an on-screen menu which allows control and set up of
brightness, contrast, saturation, hue, sharpness, colour temperature and
picture in picture. The menus can also be used to display onscreen
overlays for frame marker, 4:3 marker, 16:9 Marker, Cinema Zone Marker,
Center Point, embedded SDI Timecode and Monitor Title.
The
TLM-170GR Front Panel Buttons allow selection of source input as well as
PIP, Aspect ratio, Blue only, Pattern (Colour Bars), Menu and audio
controls. Input HD/SD sources via the rear panel SDI, HDMI, Component
(Y, Pb, Pr) and Composite connections as well as monitoring RCA phono or
embedded SDI / HDMI audio.
Features:
-Signal System NTSC, PAL
-Screen Size 17.3" TFT LCD
-Resolution 1600 x 900
-Brightness 220 cd/m²
-Contrast Ratio 650:1
-Viewing Angle Top: 20°
-Bottom: 45°
-Left: 45°
-Right: 45°
-White Balance 6500K, 9300K, Custom
-Video Inputs 2 x HDMI (Ver. 1.3)
1 x 3G/HD/SD-SDI, BNC
1 x Component (3x BNC connectors)
2 x Composite, BNC
-Video Loop Output 1 x HD/SD-SDI
-1 x Composite
-SDI Formats Supported SMPTE 425M A/B
-1080p (60/59.94/50/30/25/24)
-1080i (60/59.94/50)
-SMPTE 296M
-1080p (60/59.94/50)
-SMPTE 125M
-480i (59.94)
-ITU-R BT.656
-576i (50)
-Audio Input Mono audio inputs that correspond to the analog video inputs (RCA connectors):
-2 x Composite
-1 x YUV
-Audio Output Speaker cable output connections (L-, L+, R-, R+), Max. 5V p - p (2 W)
-1 x 3.5 mm headphone jack
-Built-in speakers
-Tally Input 1 x 3.5 mm
-Tally Indicators Live (Red)
-Cued (Amber)
-Remote Control Yes
-USB 1 x USB 2.0
-Network 1 x LAN remote control, RJ-45
-Operating Temperature 32 to 122°F (0 to 50°C)
-Humidity Less than 90%
-Power Requirements 12 VDC 5.0 A, 110/220 VAC
-Power Consumption 15 W
