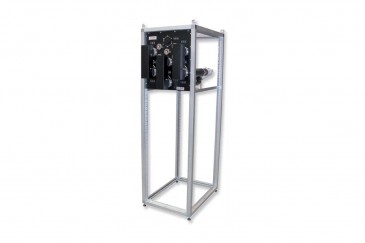

6 PORTS-3 U-LINK 5" IN/OUT 4-1/2" NO FLANGED
Klik pada gambar untuk memperbesar
| Harga | Rp 1,00 |
| Ketersediaan Barang | Tak Terbatas |
Lebih Lengkap Mengenai 6 PORTS-3 U-LINK 5" IN/OUT 4-1/2" NO FLANGED
FREQUENCY RANGE
470 ÷ 860 MHz
IMPEDANCE
50 ohm
RETURN LOSS (in the operating channel)
≥ 32 dB
INSERTION LOSS
≤ 0.1 dB
OPERATING TEMPERATURE RANGE
-40 ÷ +70° C
MATERIALS
- Support frame
Galvanized steel
- Supporting plate
Aluminium
- External body
Polished copper, polished brass
- Inner conductor
Silver plated brass, silver plated aluminium
- Insulating material
Teflon
EXTERNAL FINISHING
Painted Ral 9005, Surtec 650
