RF Power Amplifier

RF Power Amplifier

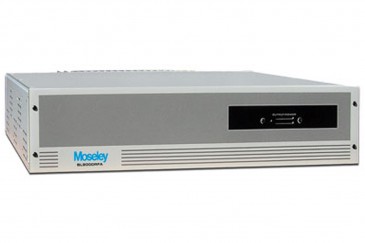

Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Ketersediaan Barang
Tak Terbatas

Lebih Lengkap Mengenai RF Power Amplifier

The SL9000RFA provides 10 Watts Output Power for robust operation on difficult STL paths. It is specifically designed for use with Moseley Starlink STL systems. 220, 300, 800 and 950 MHz STL Bands. High efficiency amplifier for low power  consumption and heat .

Interoperates with TP-128 Automatic Transfer Panel. Operates within ratings of Moseley LanLink duplexer. Front panel monitoring of Output Power Level. Output Isolator protects from antenna and cable faults.

Features:

General:
-Rated Power Output 10 Watts (+40 dBm)
-Power Input 1 Watt (+30 dBm)
-Gain 10 dB
-Operating Bandwidth 50 MHz
-Input/Output Impedance 50 Ohms (Nominal)
-RF Connectors N-Type
-Remote Connector D9-F
-Cooling Dual Fan Forced Air Over Heat Sinks
Management:
-Front Panel Indicators Power On, Output Power Level
-Remote On/Mute, Status, Output Power Level
Physical:
-Power Requirements Universal AC 90-260 V, 47-63 Hz,
-80 Watts (Consult Factory for DC)
-Mount 19” Rack Mount – 2 Rack-units
-Operating Temp. Range -20ºC to +60ºC Ambient
-Operating Humidity 90% (Non-condensing)
